- High Capacity Screening Equipment ranging from 1 Ton/hr. to 50 Tons/hr.
- Rugged shaft-less design to handle powder / heavy / bulky material.
- Dual Drive with VFD Control to have better control over retention inside the Trommel. This also improves ON-Load starting ability of the Trommel.
- Can be used for De-silting or De-watering of products.
- Cascading action for better screening efficiency. 6. Has a tendency of self-cleaning and also comes with a cleaning brush (optional).
- Easy replaceable screens.
- Friction drive, a less complicated driving mechanism, replacing Central Shaft driving system.
- Stainless Steel construction for corrosive material and food products.
Trommel is a shaft-less Rotary Screen capable of segregating various types of input material. Segregation is, primarily, done on the basis of size. Multi fraction outputs can be taken from the Trommel using different sizes of screen. JAINUM – Trommels are uniquely designed with Two independent drives which are synchronized by using a Variable Frequency Drive. This results in better control over retention time inside the Trommel and provides uniform traction – lesser slippages, ensuring good life of tyre. Further, on-load starting is also much easier as compared to traditional drive.
Specification
| Particulars | Details |
| Type | Shaft-less Rotary Screen |
| Capacity | upto 50 cu.m./hr |
| Tyre | Solid Rubber. |
| Screen Diameter | 0.8 to 2.5 m |
| Screen | Wiremesh / Punched |
| Screening Length | 1.5m to 6.0 m |
| Overall Length | 3.0 m to 8.0 m |
| Riding Ring | Heavy Duty, Fabricated and Machined. |
| MOC | IS 2062 Grade ISMC 125, 100 etc. |
| Protective Covers | IS 2062 |
| Speed | 12 - 20 rpm |
| Power | Synchronized Dual Drive (VFD Controlled) |
| Motor | TEFC, IE2, 3 Phase, 50 Hz |
| Motor Make | ABB / Siemens /Hindustan |
| Gearbox | In-line Helical (Bonfiglioli / PBL) High Safety Factor >1.5 |
| Bearings (Make) | NTN / SKF / URB |
| Drive Chain | Duplex – 1” Pitch |

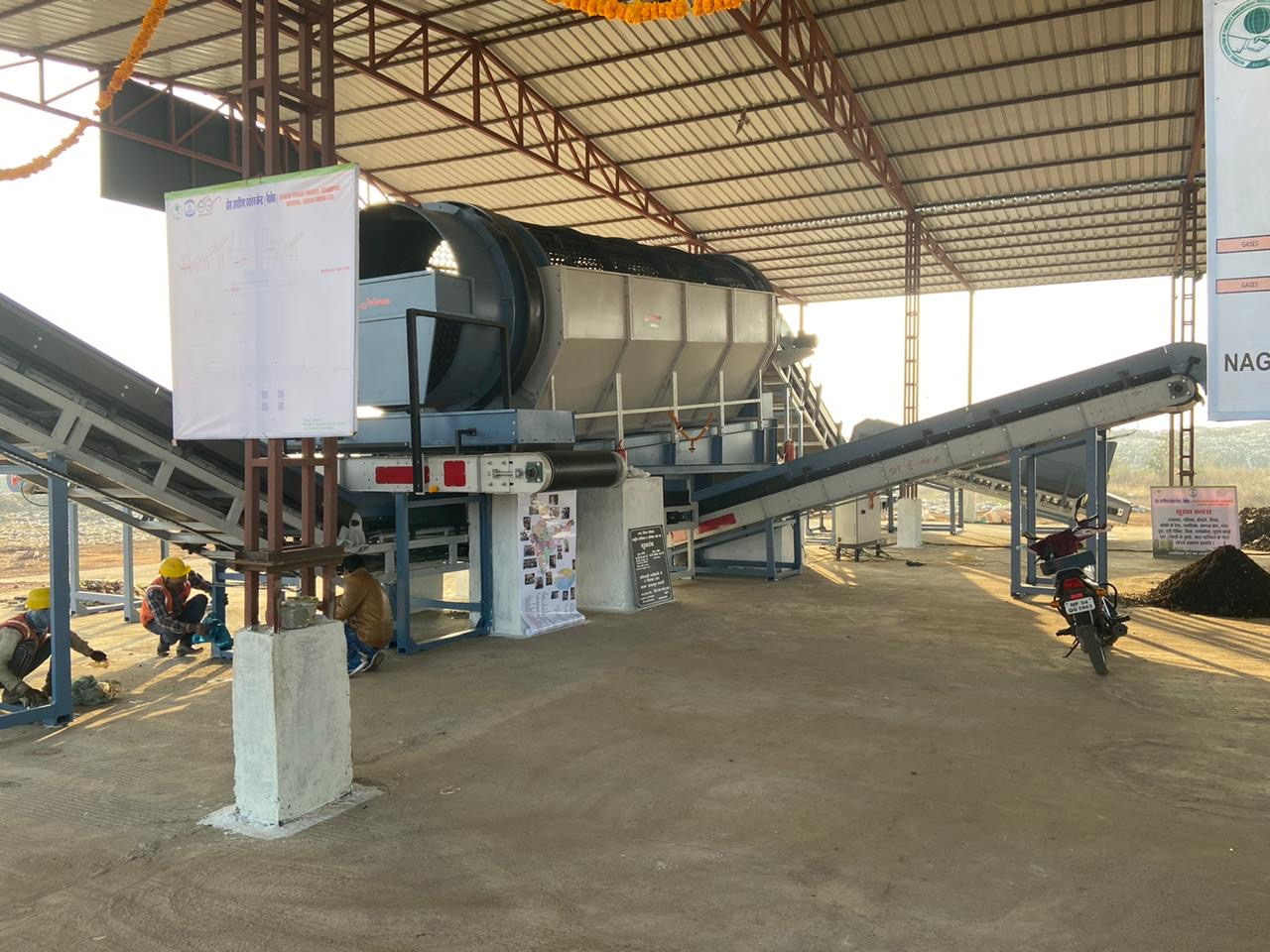

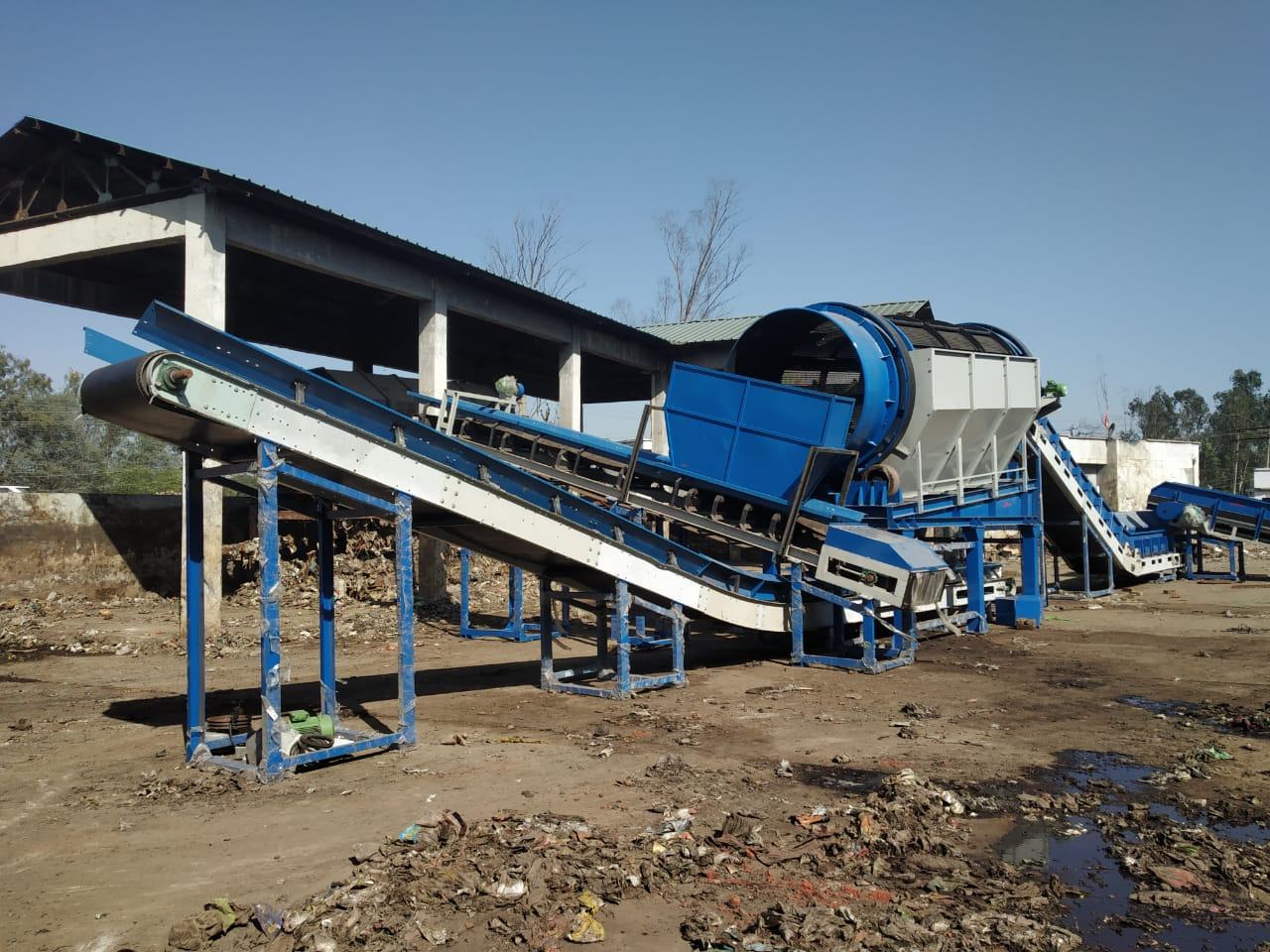

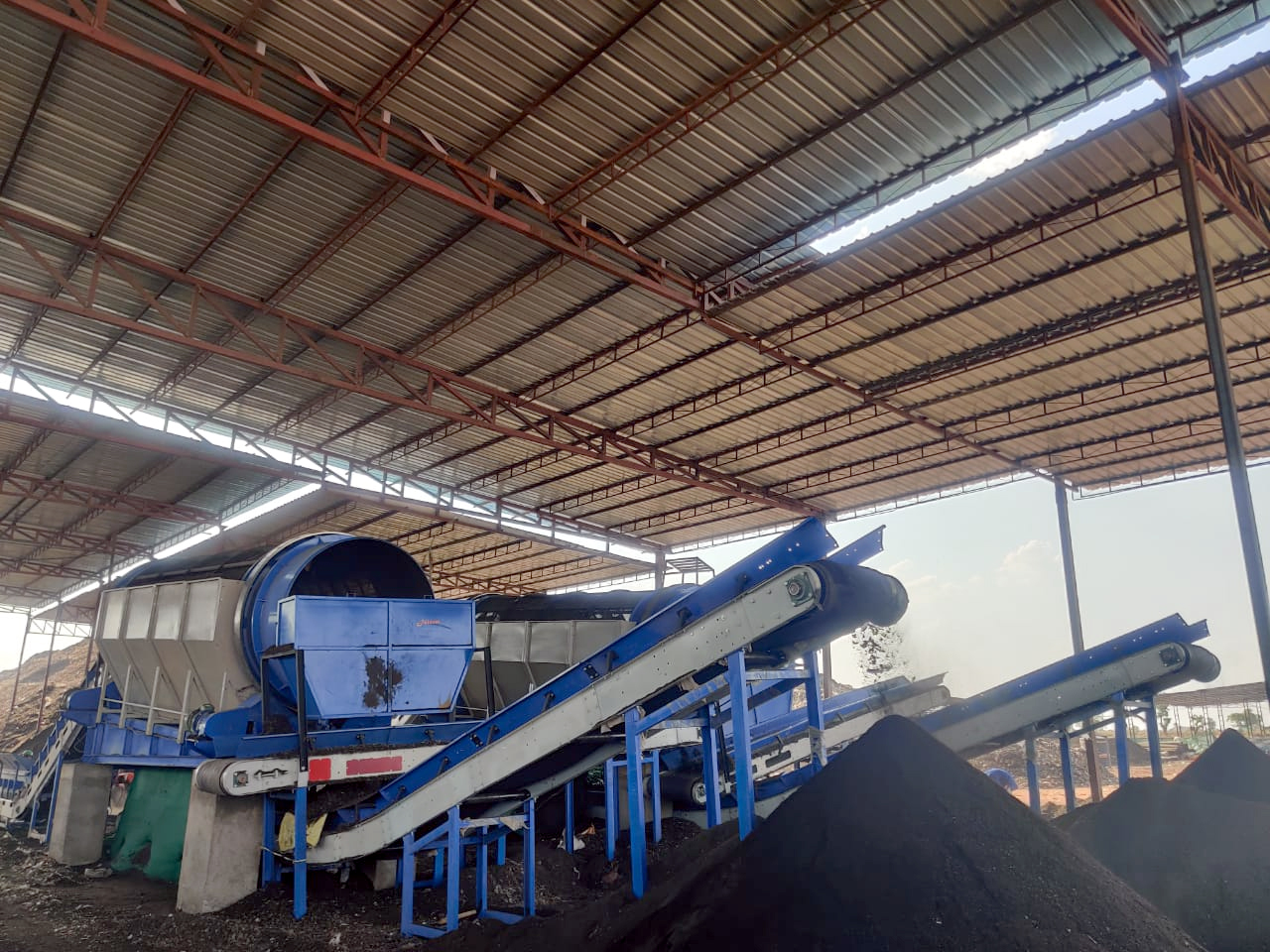

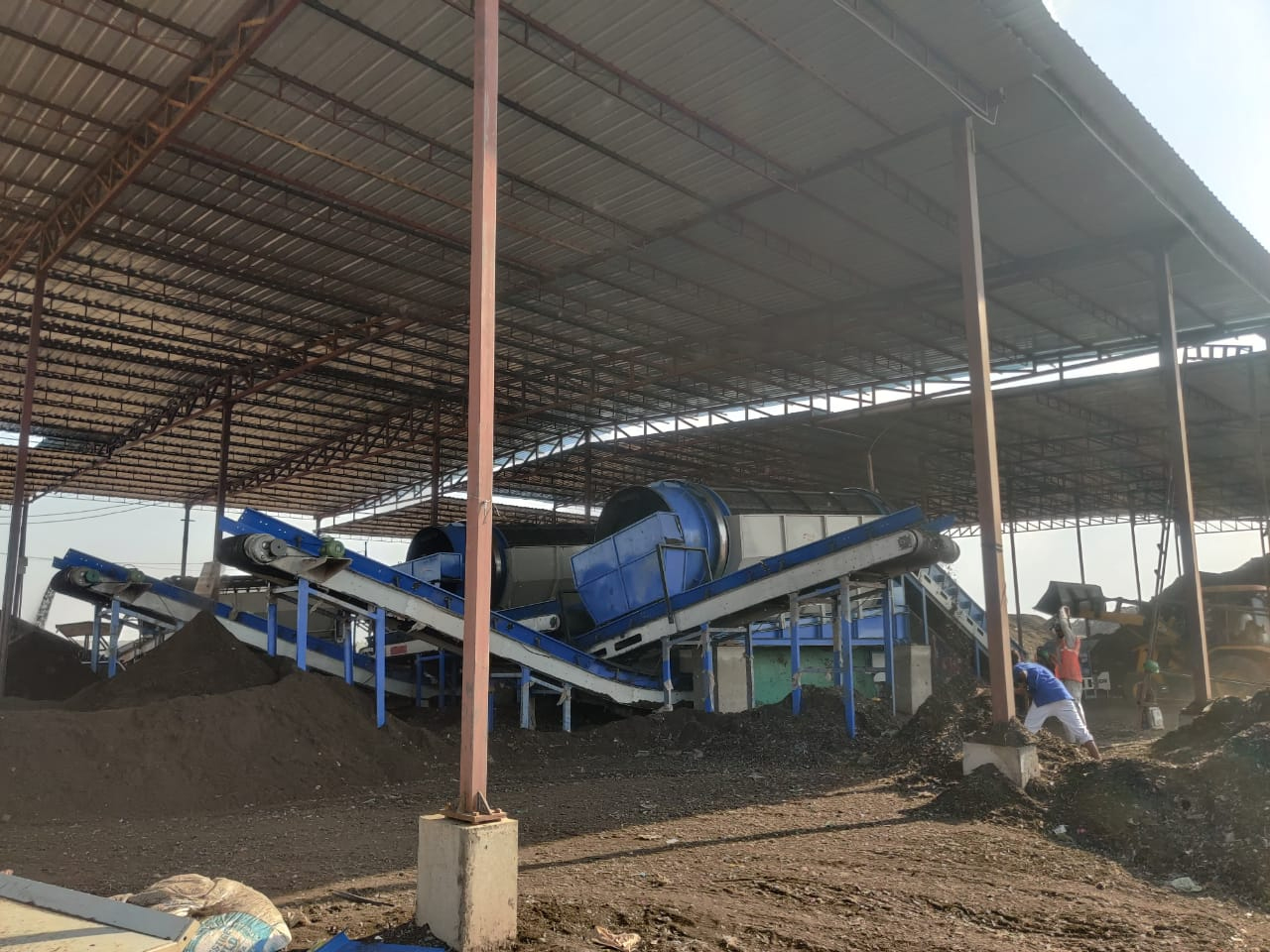

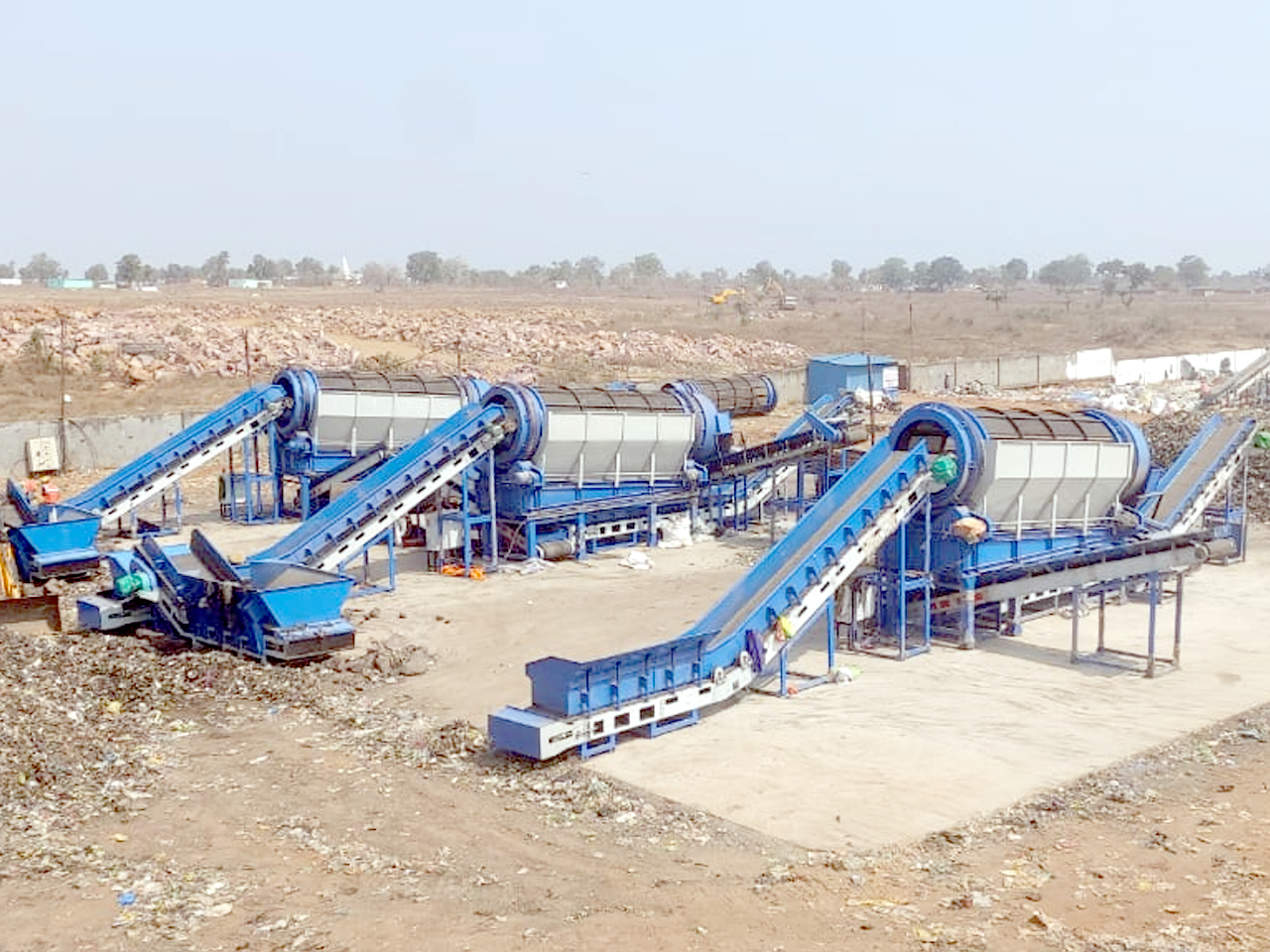

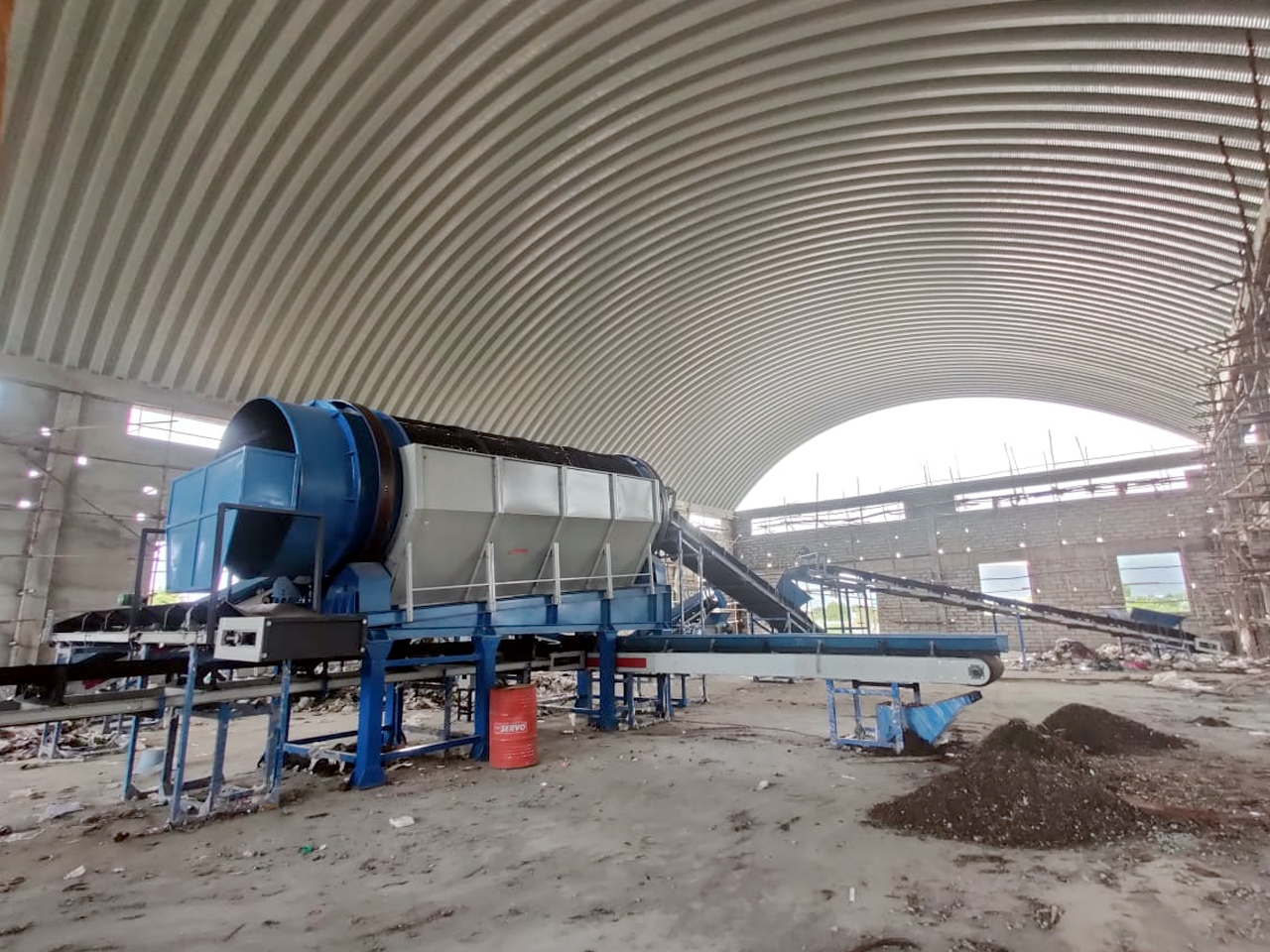

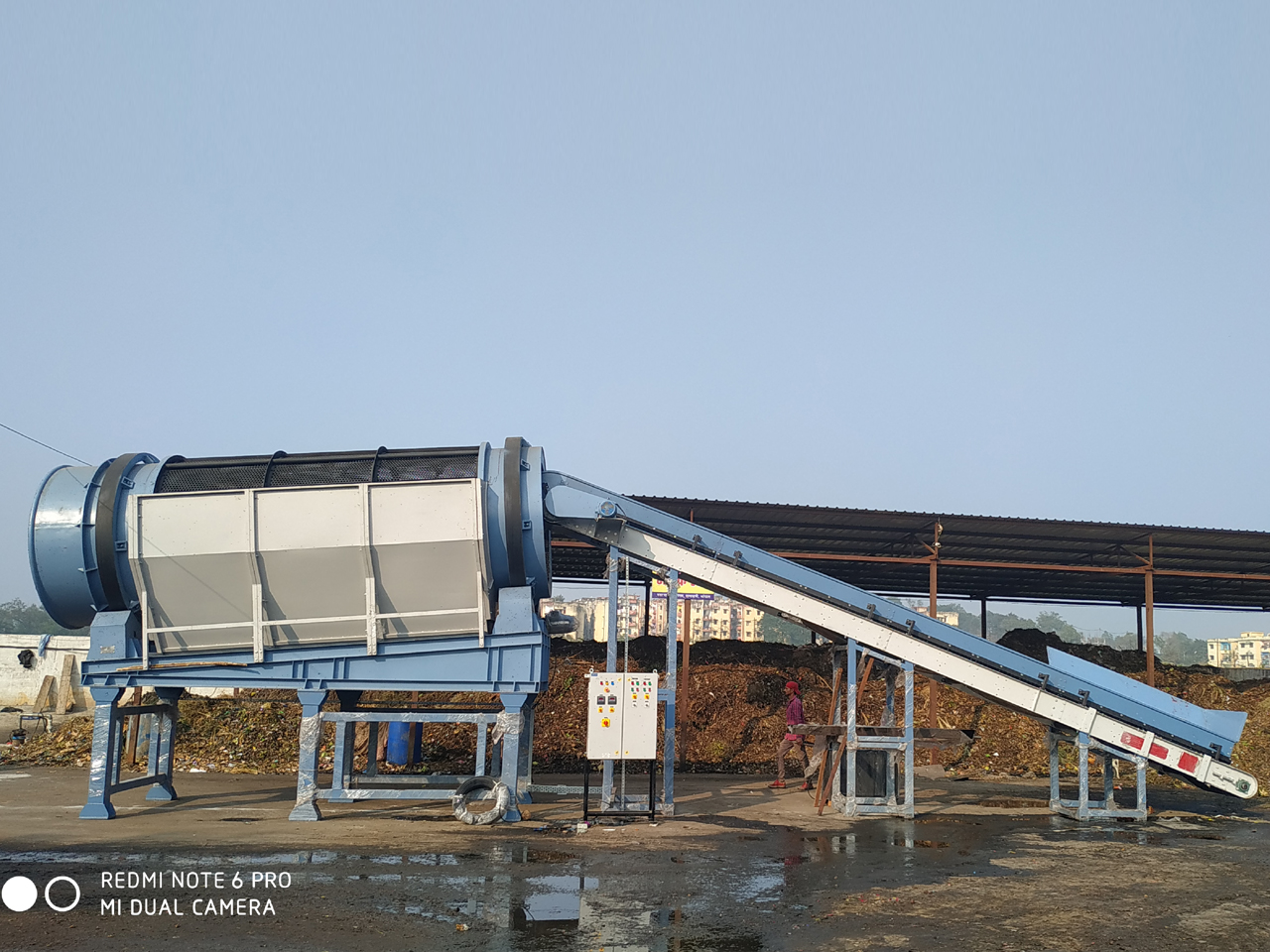

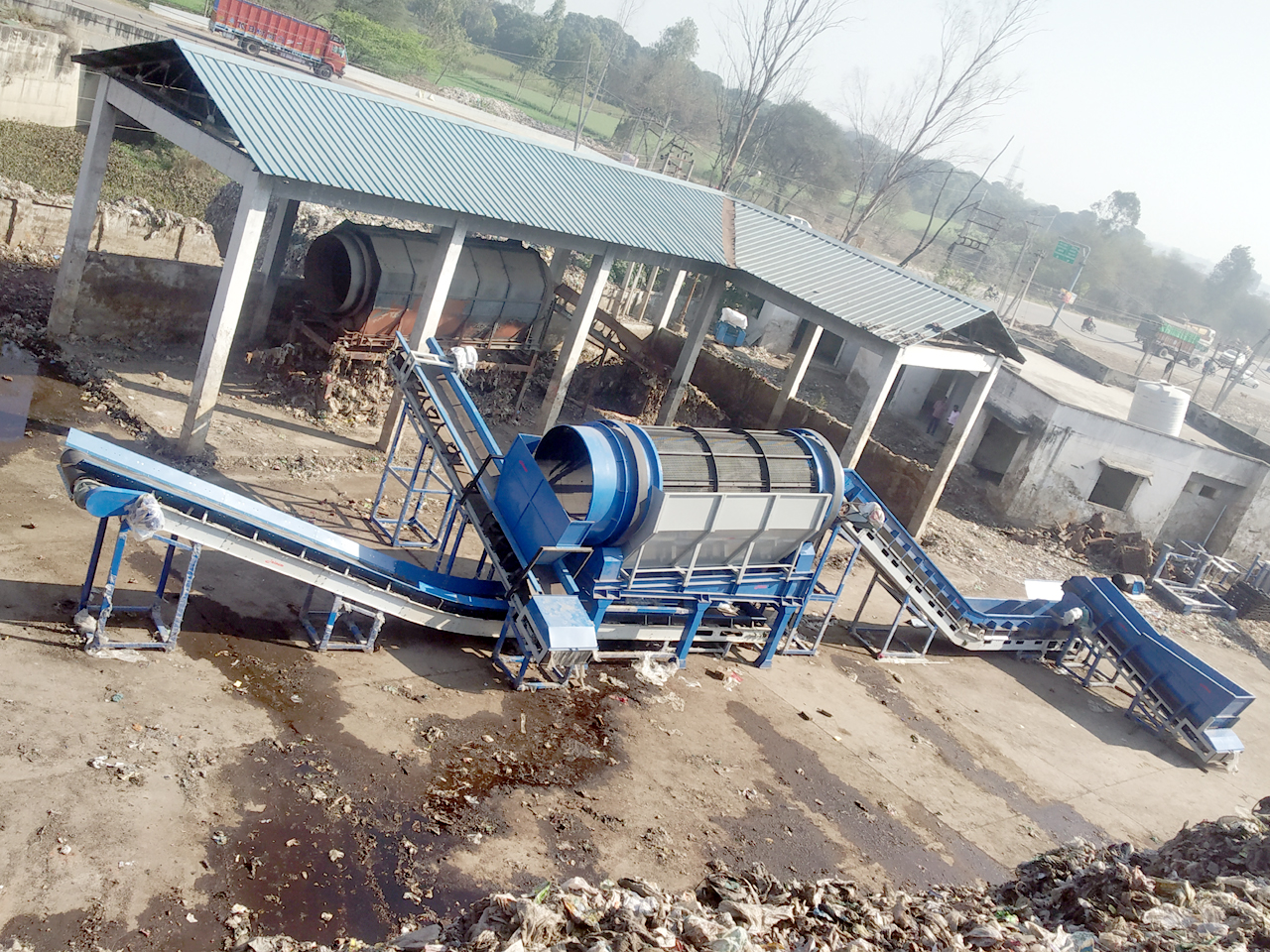

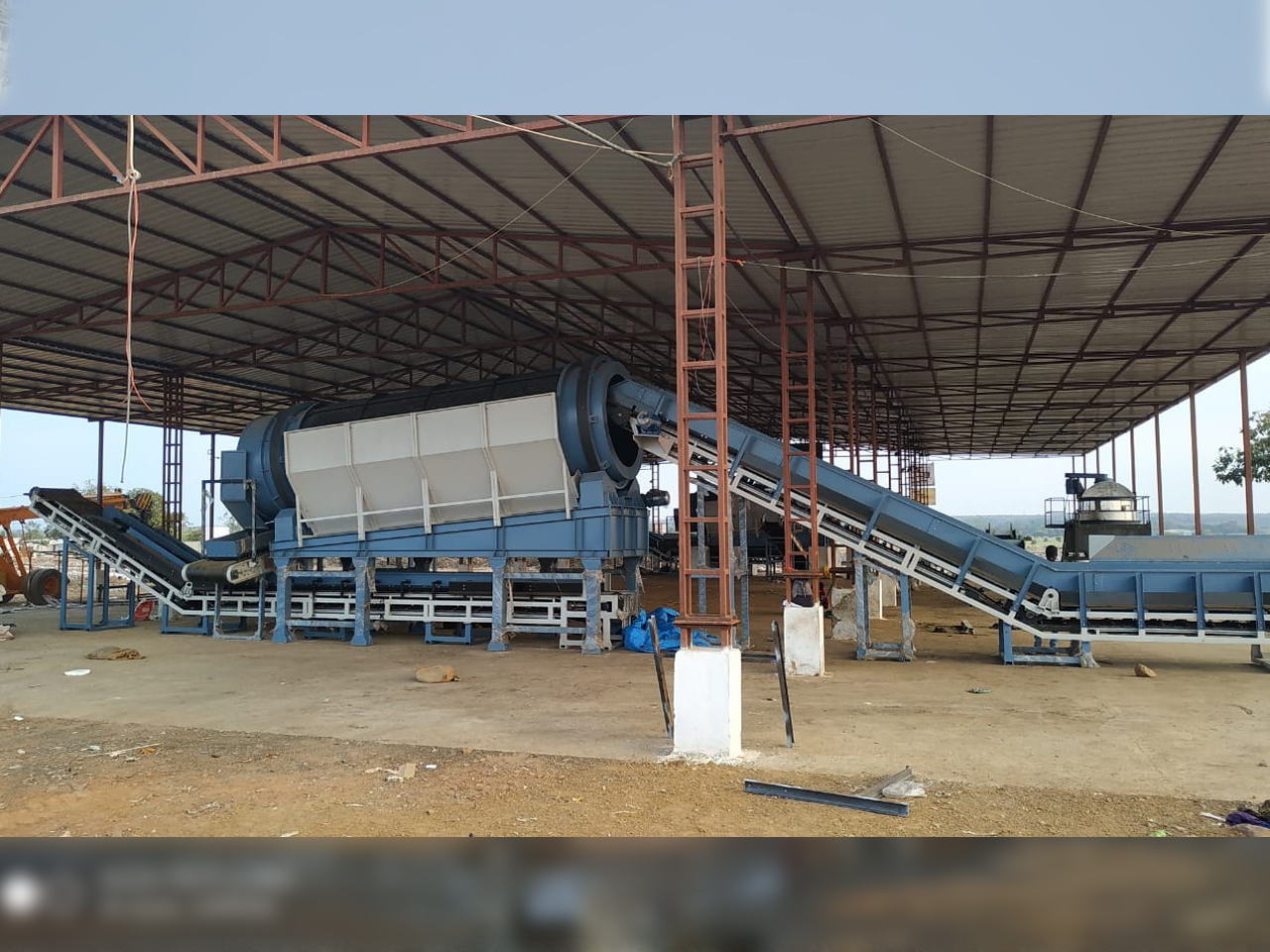

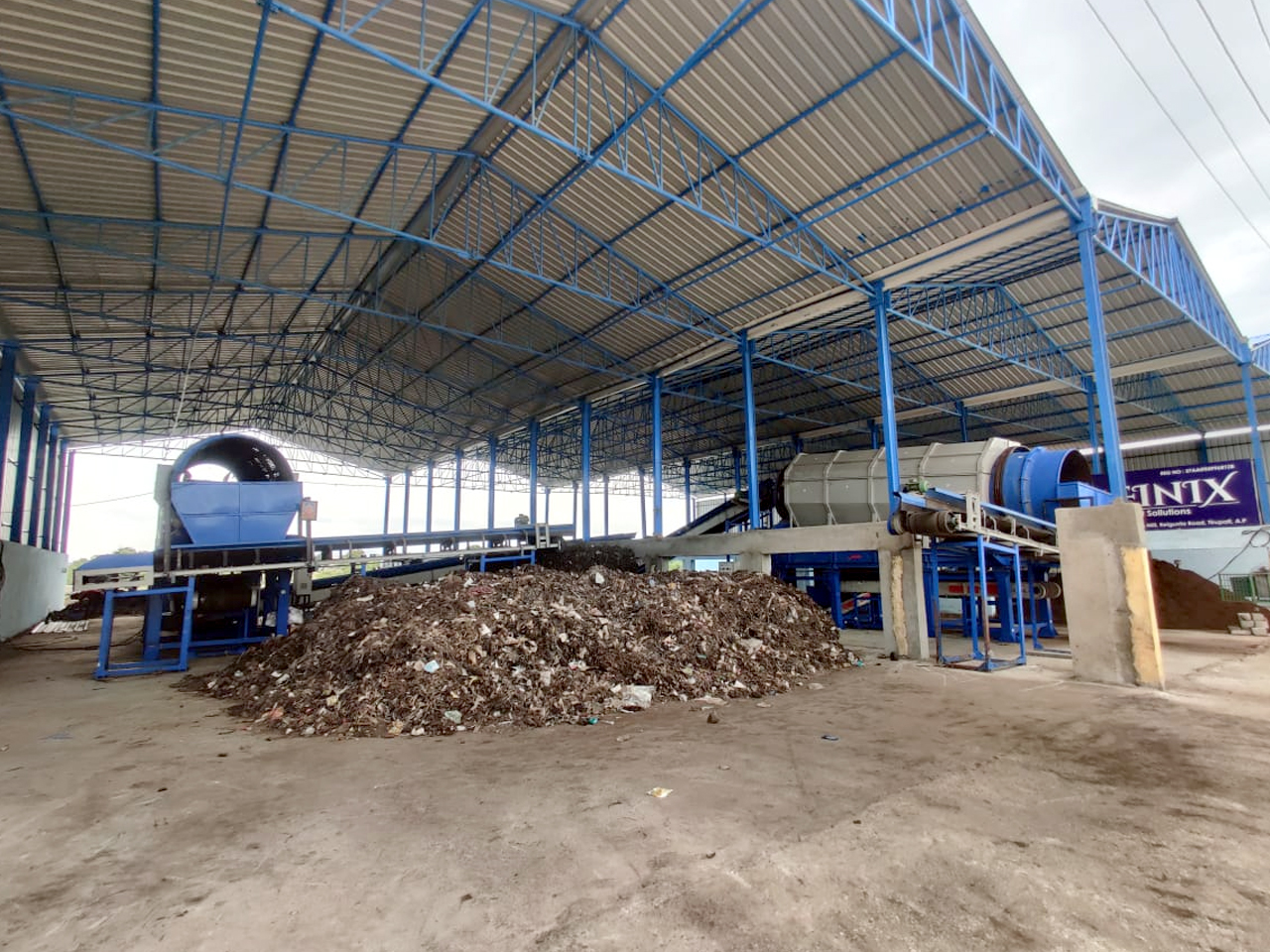

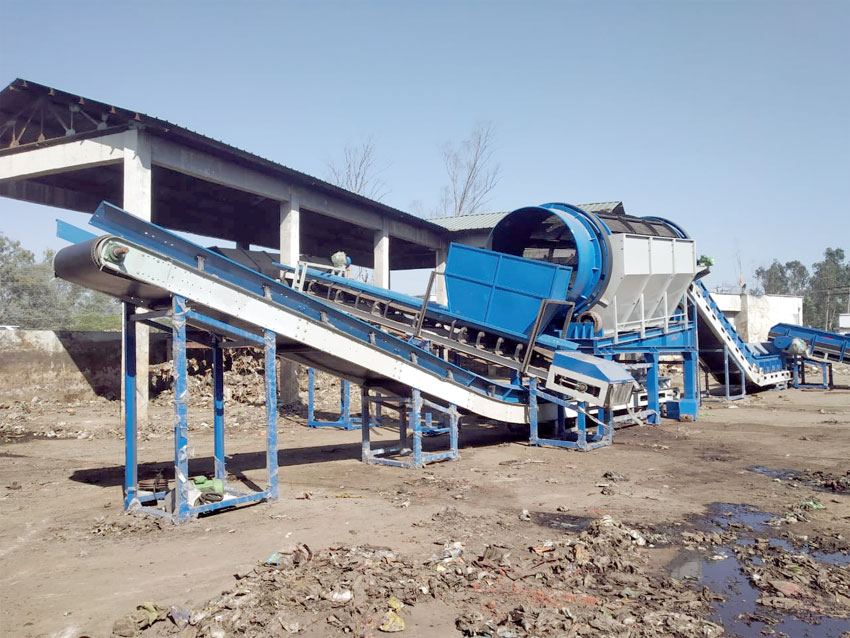

Product Gallery
