Table Conveyor are mobile conveyors usedfor horizontal or inclined (fixed angle) shifting of Bags, Boxes, Crates etc. These units are also pre-dominantly at the place where the Truck/ Container Floor level is parallel to Godown level.
Table Conveyor comes in three broad categories :
1) Table Conveyor - Fixed Length
2) Telescopic Table Conveyor (Single Stage) – Variable Length
3) Telescopic Table Conveyor (Two Stage) – Variable Length.

Table Conveyors

Table conveyors comes with only minor adjustment in height i.e. 300 mm, however, the length remains fixed.

demo

Inquiry Download

Telescopic Table Conveyors (Single or Two Stage)

Telescopic Table Conveyor has adjustable Length, as per design, with a typical 6m conveyor even reaching as far as 13 m. Also, the height adjustment of 300mm translates to almost 650mm with telescopic conveyor.



Specification

Particulars Details
Type Table Conveyor / Telescopic Table Conveyor (Single or Two Stage)
Length 4.5 m – 20 m
Discharge Height As per design
Feed Height 0.85 m to 1.5 m
BeltWidth 0.3 m to 0.65 m
Belt Type Polymer or Nylon (M24)
Belt Speed 0.8 to 1.2 m/s
Power 2.0 to 7.5 H.P.
Drive Pulley Rubberised, Diameter- 10” / 12”
Idler Pulley Plain / Rubberised, Diameter- 6” / 8”
Motor TEFC, 3 Phase, IE2
Motor Make Siemens /ABB / Hindustan
Gearbox Worm-Gear / In-line Helical
Gearbox Make Bonfiglioli / PBL / Elecon

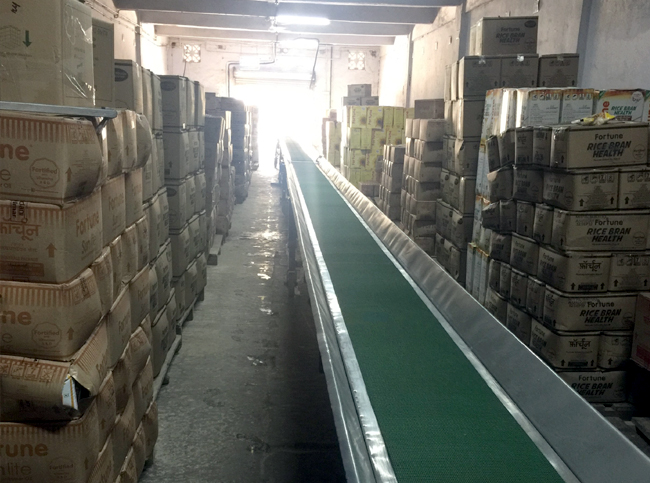

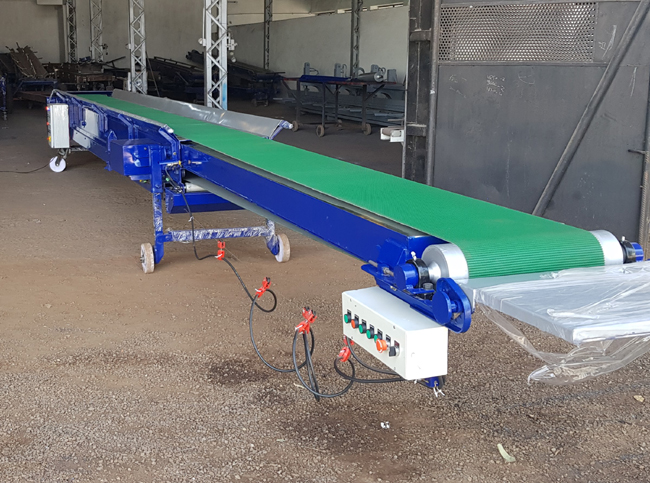

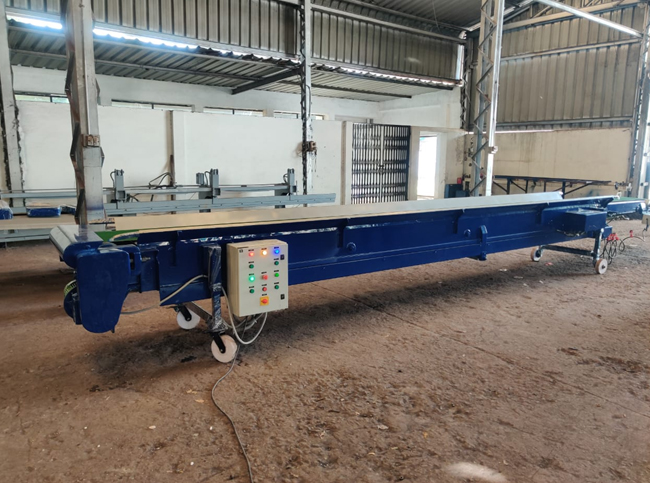

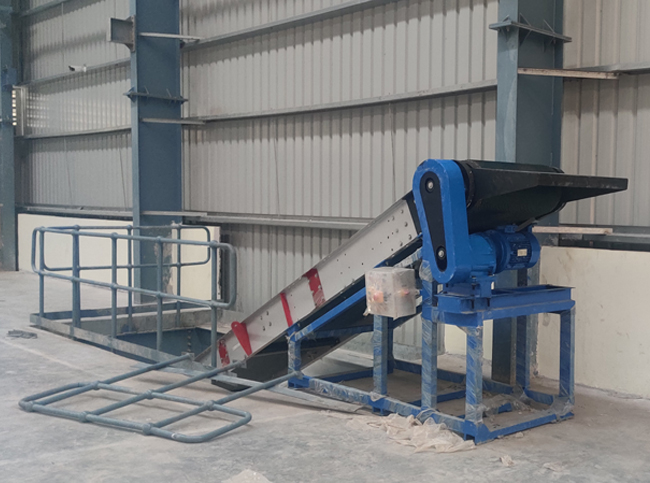

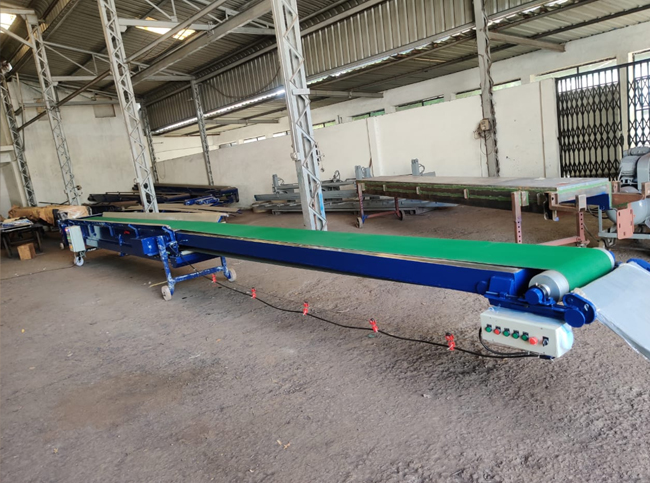

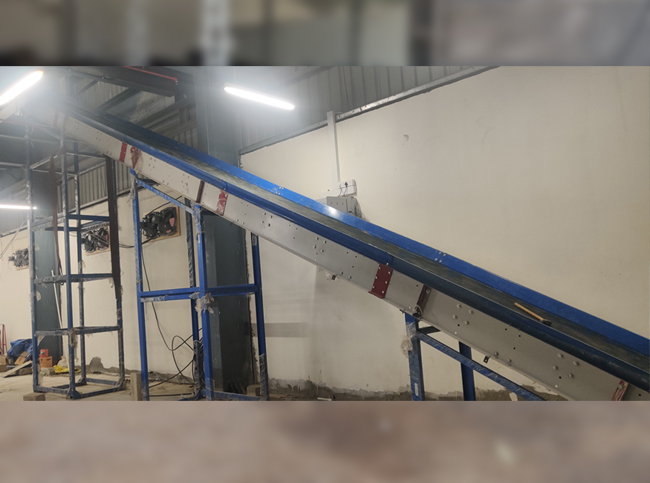

Product Gallery

demo
demo
demo
demo
demo

Benefits & Features

  • 1. Front & Rear Solid Tyres
  • 2. Telescopic design helps is easy manoeuvring of the conveyor inside the Godown.
  • 3. Adjustable Front Lip
  • 4. VFD Control Panel for Belt Speed Variation (Optional)
  • 5. LED Lights for Night Operations.
  • 6. Combination of Roller and Support Plate.
  • 7. Rubberised Head and Tail Pulley for better traction/ side shift control.
  • 8. Emergency Pull Chord, 24 V Control Supply and other electrical safety.
  • 9. Unique heavy duty but light weight chassis design.
