- High efficiency homogenous Mixing of Flours, Spices, etc is possible.
- Mixer and Cooler are based on technology which is termed as most efficient blending technology .
- 97% mixing efficiency is obtained in only 3 minutes of operation.
- Mixing and Cooling can be done simultaneously.
- Constituents with low percentage can also be mixed thoroughly.

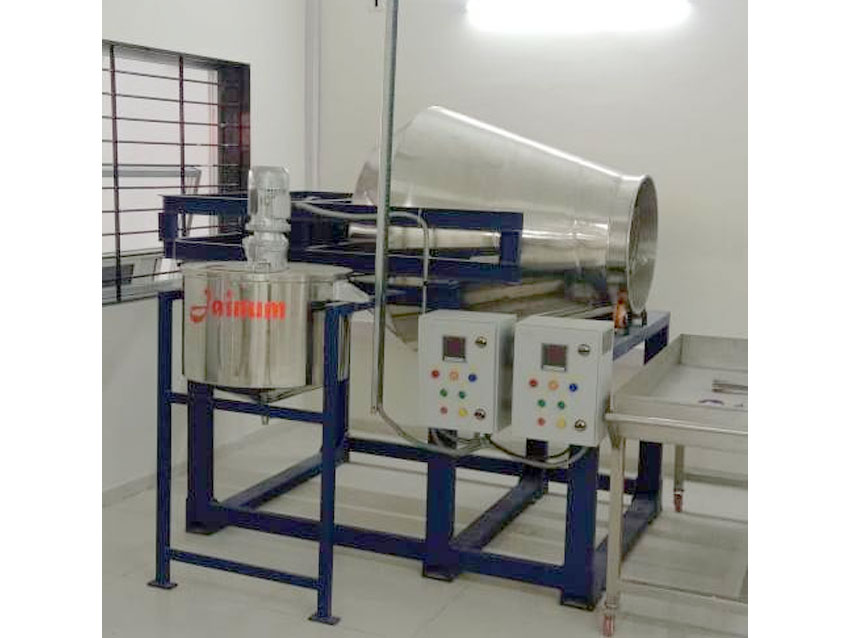

- Drum & Vertical Roaster
- Horizontal & Vertical Roaster
- Rosted Food Prodcuts

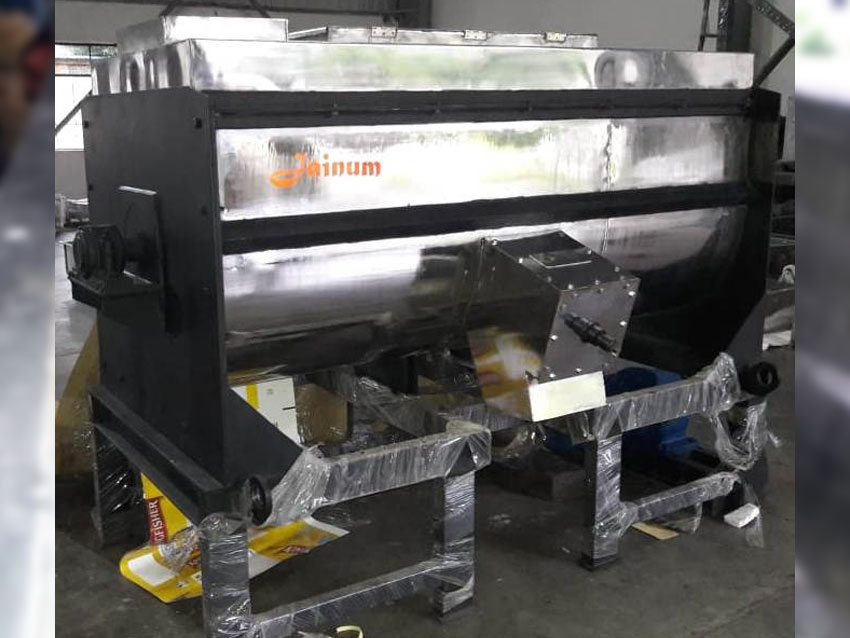

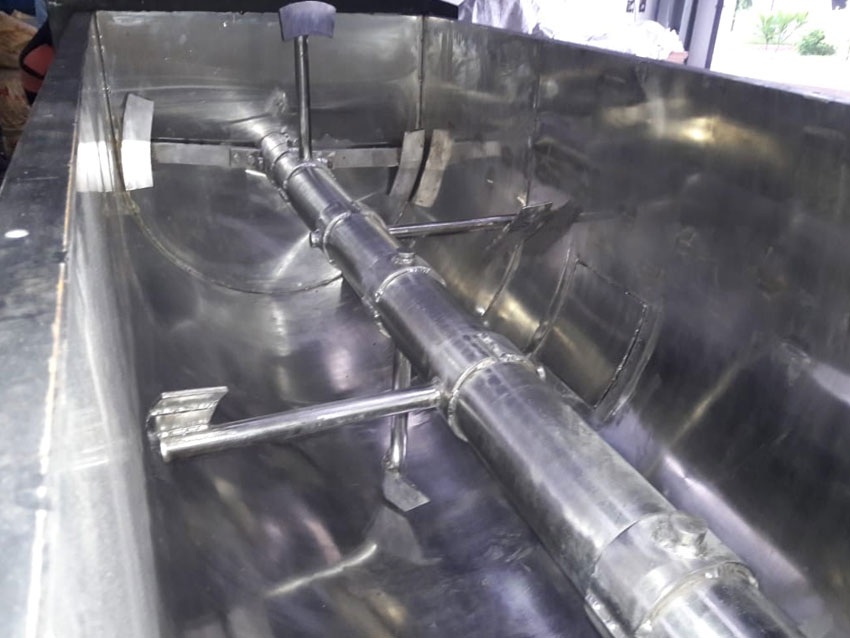

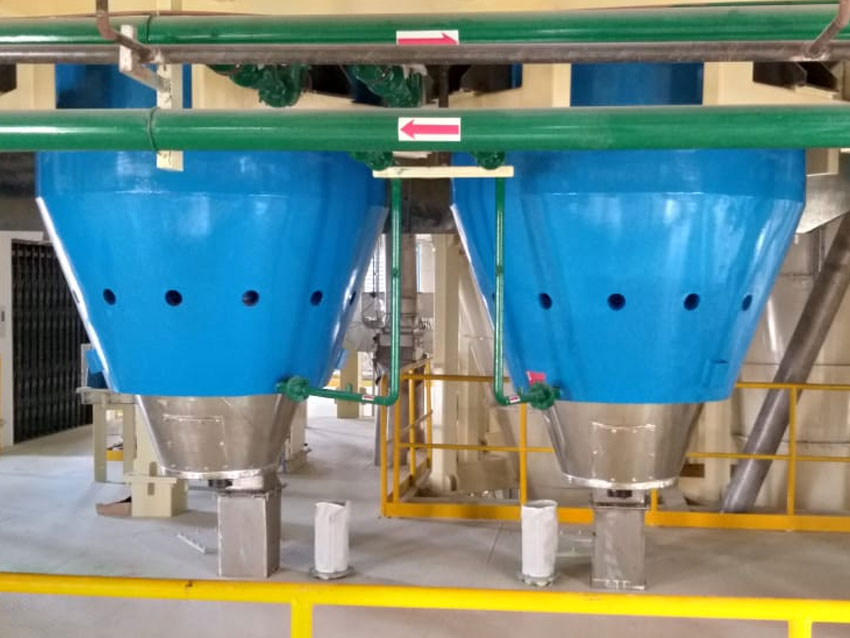

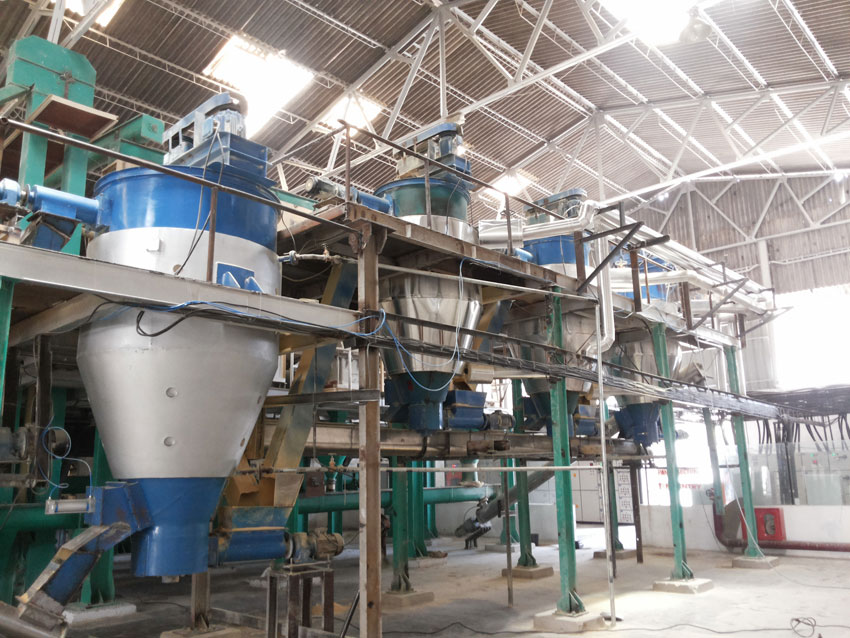

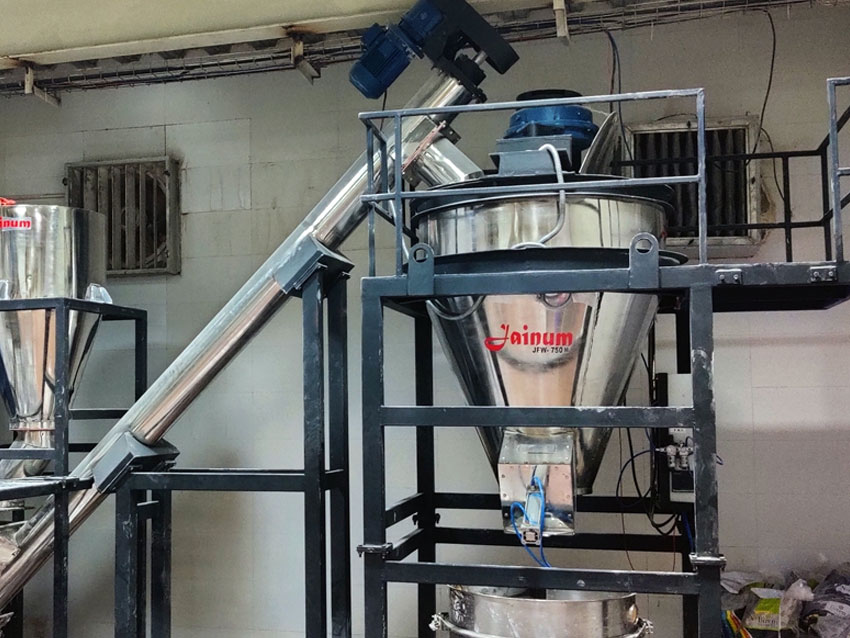

JAINUM- JFW-M & MC Series Mixers and Coolers are designed to process various flours, grit and whole grains or spices. Both Vertical and Horizontal Mixers or Coolers are offered as per product requirement. Vertical Mixer gives very high blending efficiency and can handle constituents with 1% weight or volume. Coolers with Air or Water cooling options are also offered as per product requirement. These units are available in both Vertical and Horizontal configuration based on the requirement. We offer capacities of as low as 50 kg per hour to a capacity exceeding 10 Tons per hour and has already setup number of such projects across India and around the world.
Specification
| Particulars | Details |
| Model | JAINUM - JFW M /MC |
| Configuration | Vertical / Horizontal |
| Processing Volume | 70Lits to 4000 lits |
| Drive | Electrical / VFD Drive |
| Power | 2 to 25 H.P. |
| Overall Height | 1500 to 4250 mm |
| Overall Length | 800 mm to 4500 mm |
| Overall Width | 800 mm to 2000 mm |
| Motor | TEFC, 3 Phase, 50 Hz |
| Motor Make | ABB / Hindustan / Matching |
| Gearbox | Inline Helical / Shaft Mounted |
| Gearbox Make | Bonfiglioli / PBL |
| Shell Construction | Stainless Steel 304 (Food Grade) |
| Top Cover | Stainless Steel |
| Speed | 2 -72 rpm |
| Capacity | Upto3000* Kg/batch or 4000 liters |
| Temperature Sensor | PT – 100 Probe Type |
| Discharge Hopper | Pneumatic (Solenoid Controlled) |
| Pneumatic (Make) | Janatics / Mindmann |
| Exhaust Fan | Almonara – 18” |
Product Gallery
