- VFD Controlled for increasing or decreasing retention of product.
- Unique Lift and Cascading action for uniform roasting.
- Gas / Diesel Fired Units.
- Minimum possible heat loss during roasting or drying.
- Very Low Maintenance cost and is easy to maintain with no special technical skills.
- Can process variety of food products like grits, seeds, spices etc.
JAINUM- JFW-RR Series Rotary Roasters are designed for Roasting and Drying Seeds, Gram, certain spices, and other miscellaneous items not suitable for JFW-R vertical roasters. JFW -RR can also be used for drying or roasting of Semolina (Suji). JFW-RR is heated by using Gas or Diesel fired burner. These Rotary Roasters are available in both Continuous or Batch type of operating systems. Multi-pass Rotary Roasters are also available and are designed as per the requirement of a product. These Roasters have unique lifting and cascading system ensuring homogeneity of operations during drying or roasting. Further, it reduces the possibility of charring of products.
Specification
| Particulars | Details |
| Model | JAINUM - JFW RR Series |
| Configuration | Horizontal |
| Type | Batch / Continuous |
| Total Volume | As per design. |
| Operating Volume | As per design |
| Drive | Electrical / VFD Drive |
| Power | 2 to 10 H.P. |
| Overall Length | 1500 to 5000 mm |
| Shell Diameter | 800 mm |
| Width | 1550 mm |
| Heating | Diesel / Gas Fired Burner |
| Insulation | LRB + Ceramic Blanket |
| Enclosure | Stainless Steel 202 / JT |
| Motor | TEFC, 3 Phase, 50 Hz |
| Motor Make | ABB / Hindustan/ Siemens |
| Gearbox | Worm Gear / Inline Helical |
| Gearbox Make | Bonfiglioli / PBL / Elecon |
| Shell Construction | Stainless Steel 304 (Food Grade) |
| End Cover | Stainless Steel 304 |
| Speed | 1 -25 rpm |

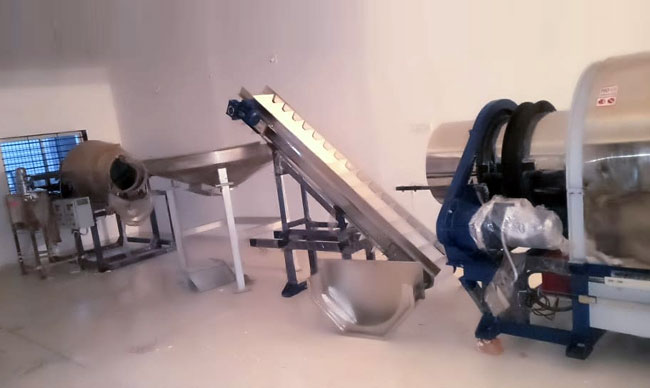

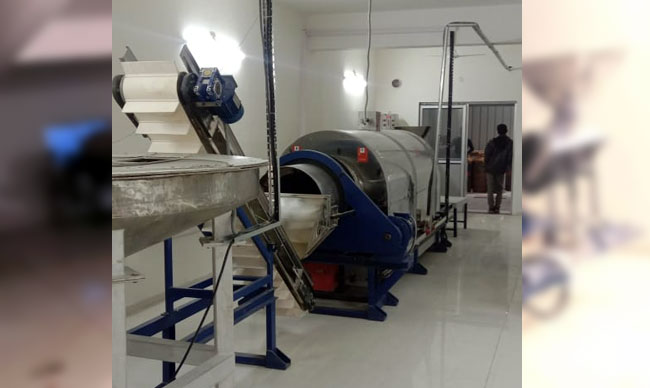

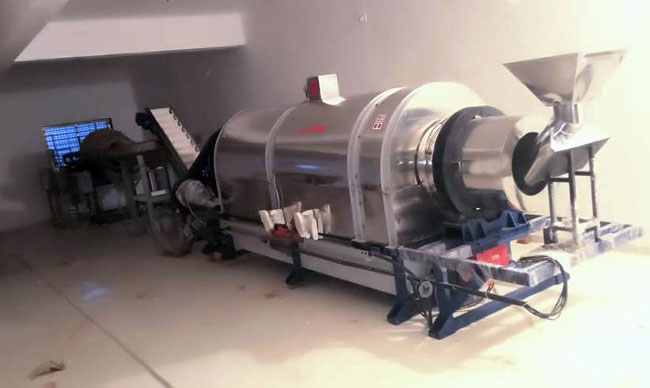

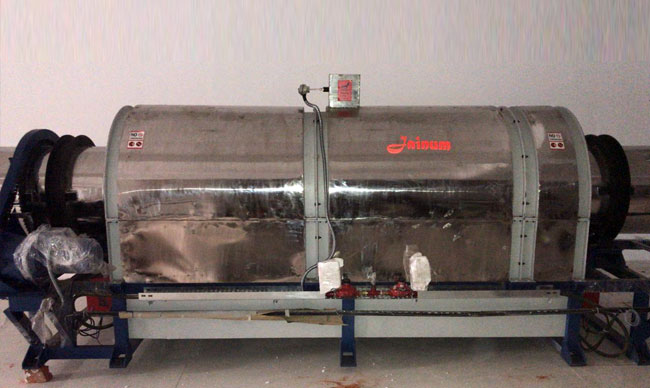

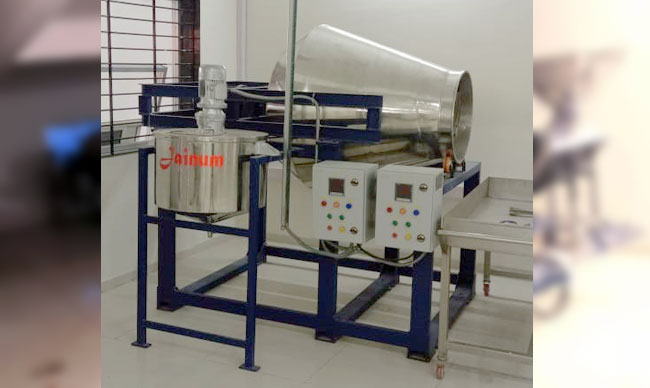

Product Gallery
