Biomining or Land Reclamation Project is now need of the hour in most of the Indian Cities. Almost all the cities in India and abroad are plagued with the situation of having huge dumps of garbage lying in the open land and occupying valuable space on land.
Land Reclamation Plant can play a crucial role in recovery of the land and utilizing old dumped waste for different constructive use like Fertile Soil, RDF Fluff, Recycled Plastic Waste etc.

demo

Inquiry Download


Specification

Particulars Details
Total Machine Area 4000 - 6000 sq.ft.
Foundation Area 150ft x 300 ft
Shed Height 25 ft.
Power Requirement 70 H.P.
Working Hours 10-12 Hours
Staff Required 2 - 6 Numbers
Working days per year 250 – 300* per year.
Feeding Capacity 250 – 300 Tons per day per Set.
Yearly Capacity (max.) 70000 to 90000 Tons per year per Set.

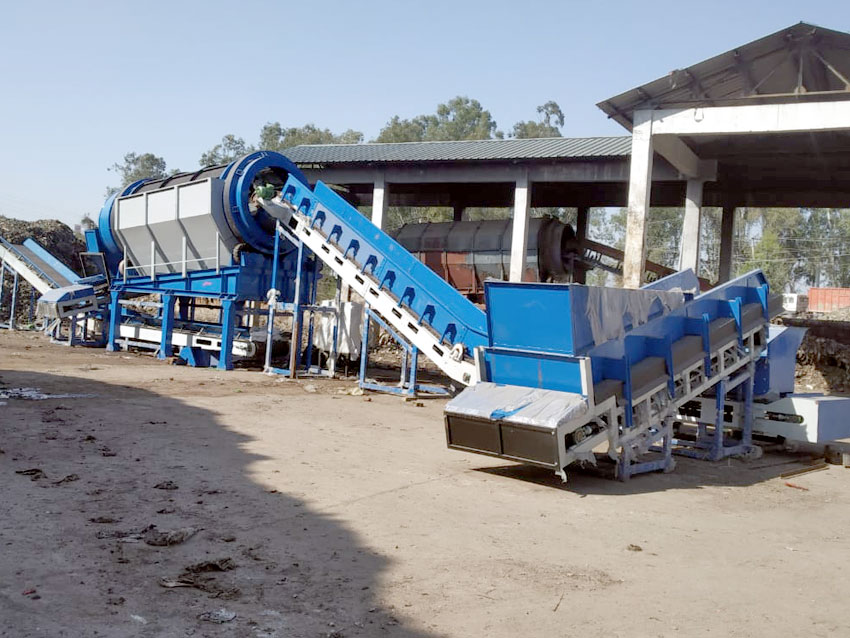

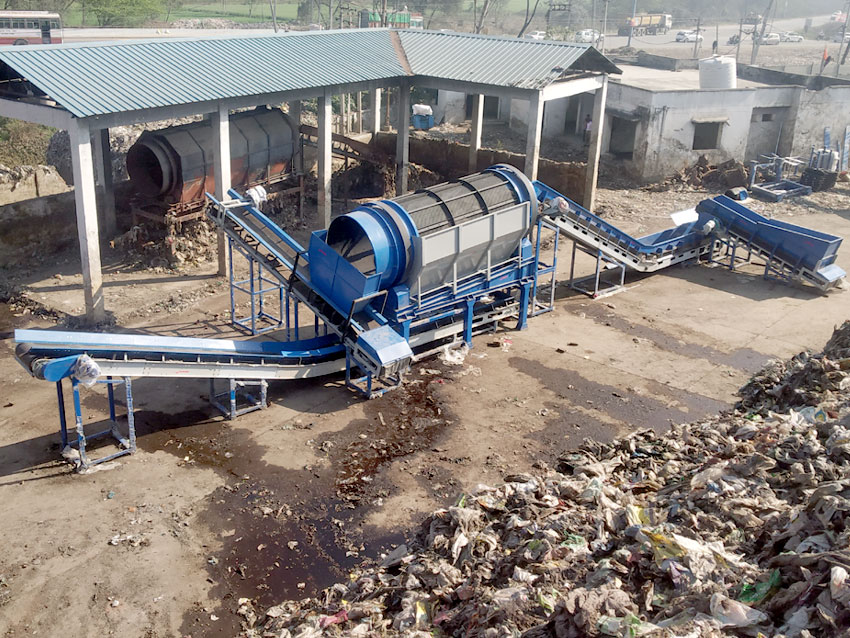

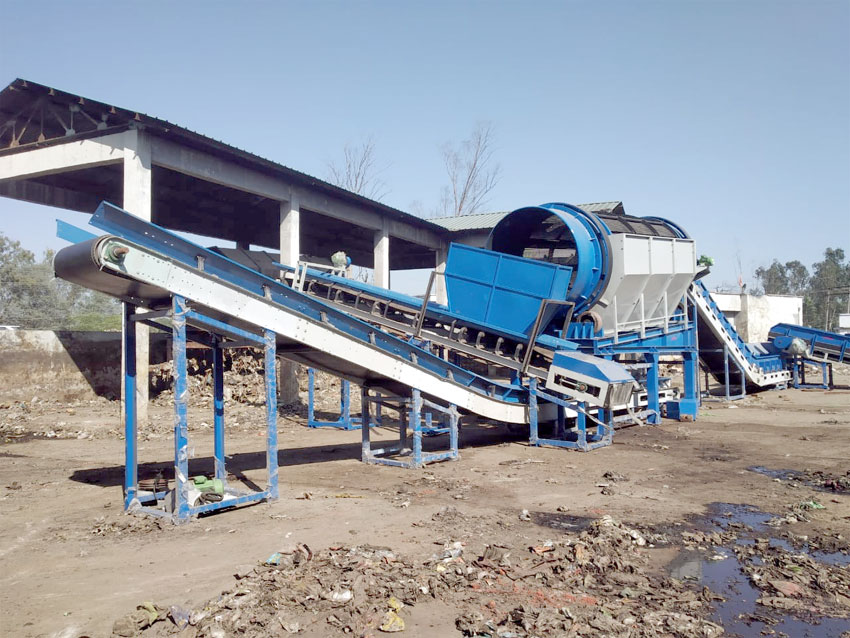

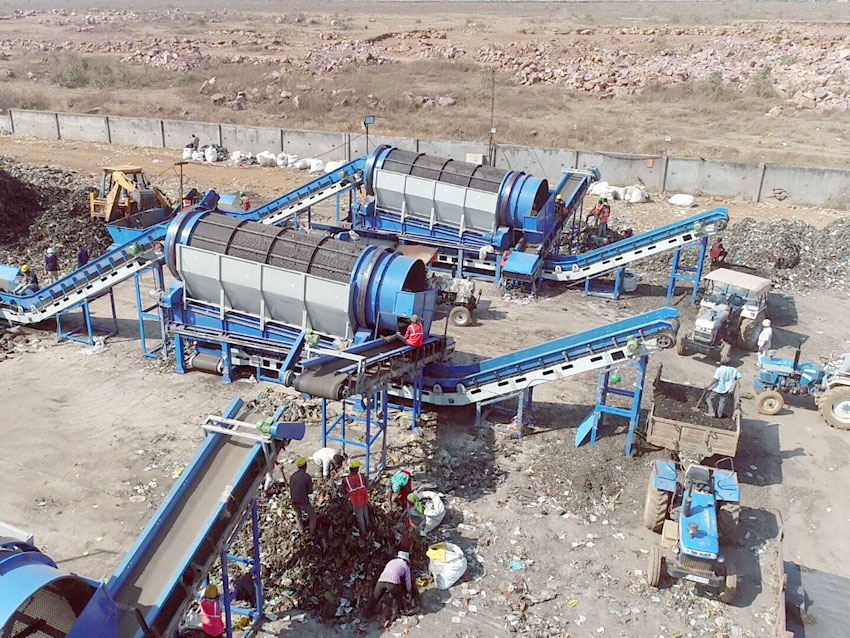

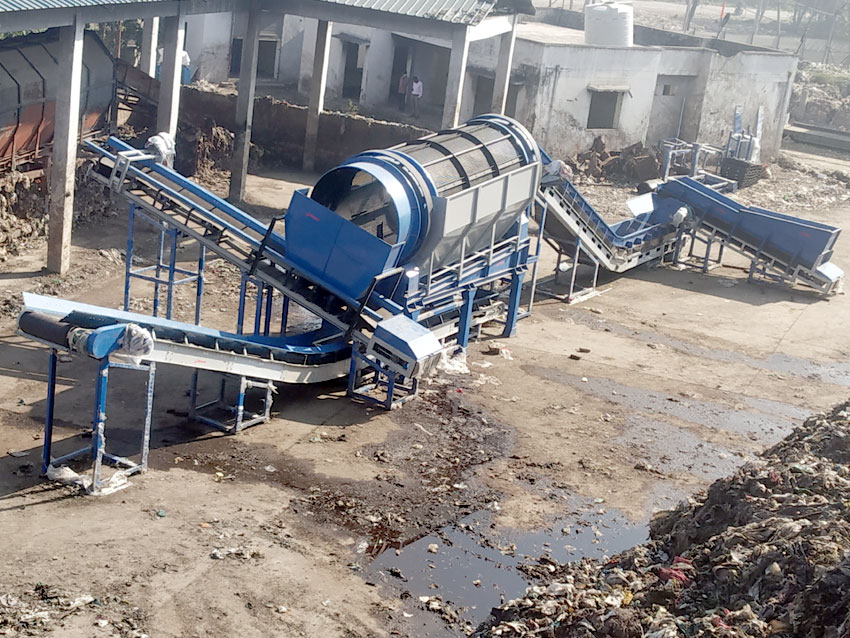

Product Gallery

demo
demo
demo
demo

LIST OF EQUIPMENTS


S.No. EQUIPMENTS QTY. PURPOSE
Bio-remediation Plant – 1 Set
1 Moving Bed Feeder Conveyor 1 No. For receiving and feeding the legacy waste at a pre-specified rate to the Feeder.
2 Feeder Conveyor 1 No. For feeding the digested material at a pre-specified rate to the Trommel.
3 Trommel Unit 2 Set. For Multi-Stage Screening of Legacy Waste as per the guidelines.
4 Undersize Conveyor- 75 mm 1 No. For Collection of screened material coming out of the Trommel Unit.
5 Oversize Conveyor +75 mm 1 No. For Collection of reject material coming out of the Trommel Unit.
6 Undersize Conveyor- 6 mm 1 No. For Collection of screened material coming out of the Trommel Unit.
7 Undersize Conveyor- 25 mm 1 No. For Collection of screened material coming out of the Trommel Unit.
8 Oversize Conveyor +25 mm 1 No. For Collection of reject material coming out of the Trommel Unit.
9 Air Density Separator with associated conveyors (Optional) 1 set. For Separation of Heavy and Light Oversize rejects.

Video Gallery

Benefits & Features

  • Screening Machines are high capacity units capable of handling material with upto 30 Tons per hour capacity.
  • These machines can be operated for long hours i.e. 16-20 hours a day continuously, owing to its robust design.
  • Chain Belt and Flat Bed Type Conveyors with side sealing skirts are used for better performance and durability.
  • Heavy duty Riding Rings (duly machined) are used in place of conventional Channel design.
  • Friction drive with heavy duty Solid Rubber Tyre and VFD Control.
  • Very Low Operating Costs.
